Mad Catz X16

These were sold either as Mad Catz, or High Frequency (toys'r'us brand).

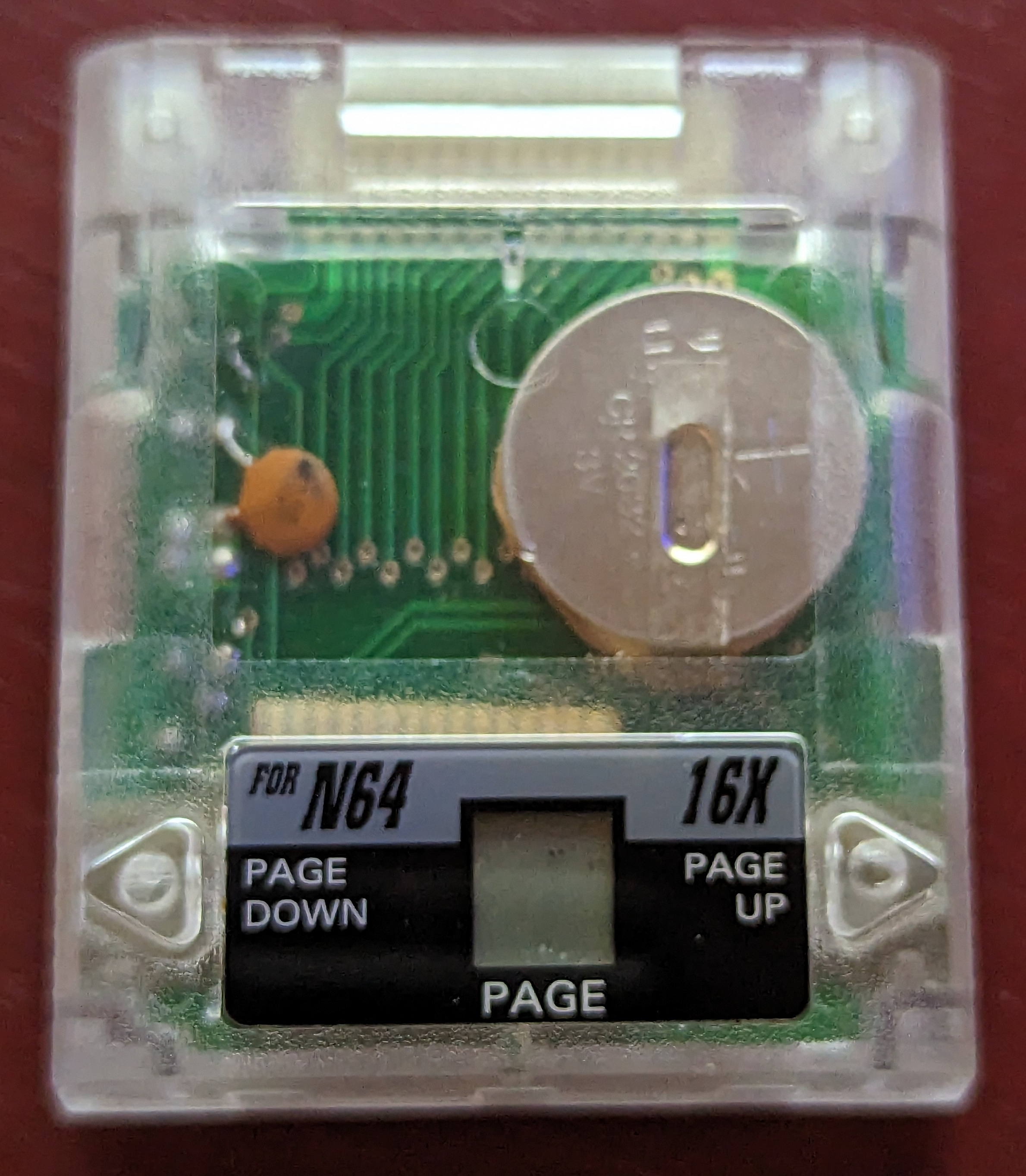

X16 version that gives you 16 memory cards in one, with page up/down buttons to switch.

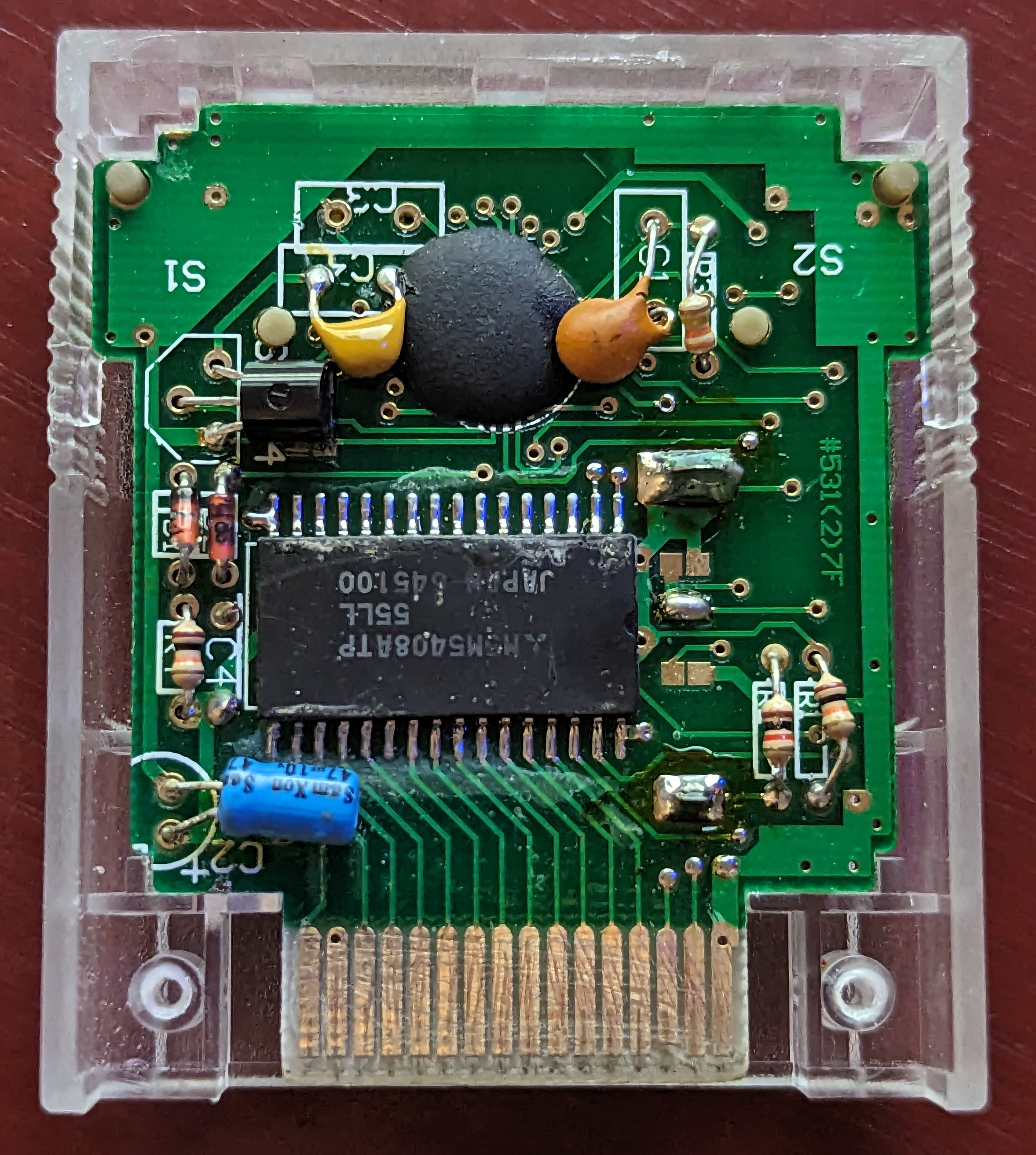

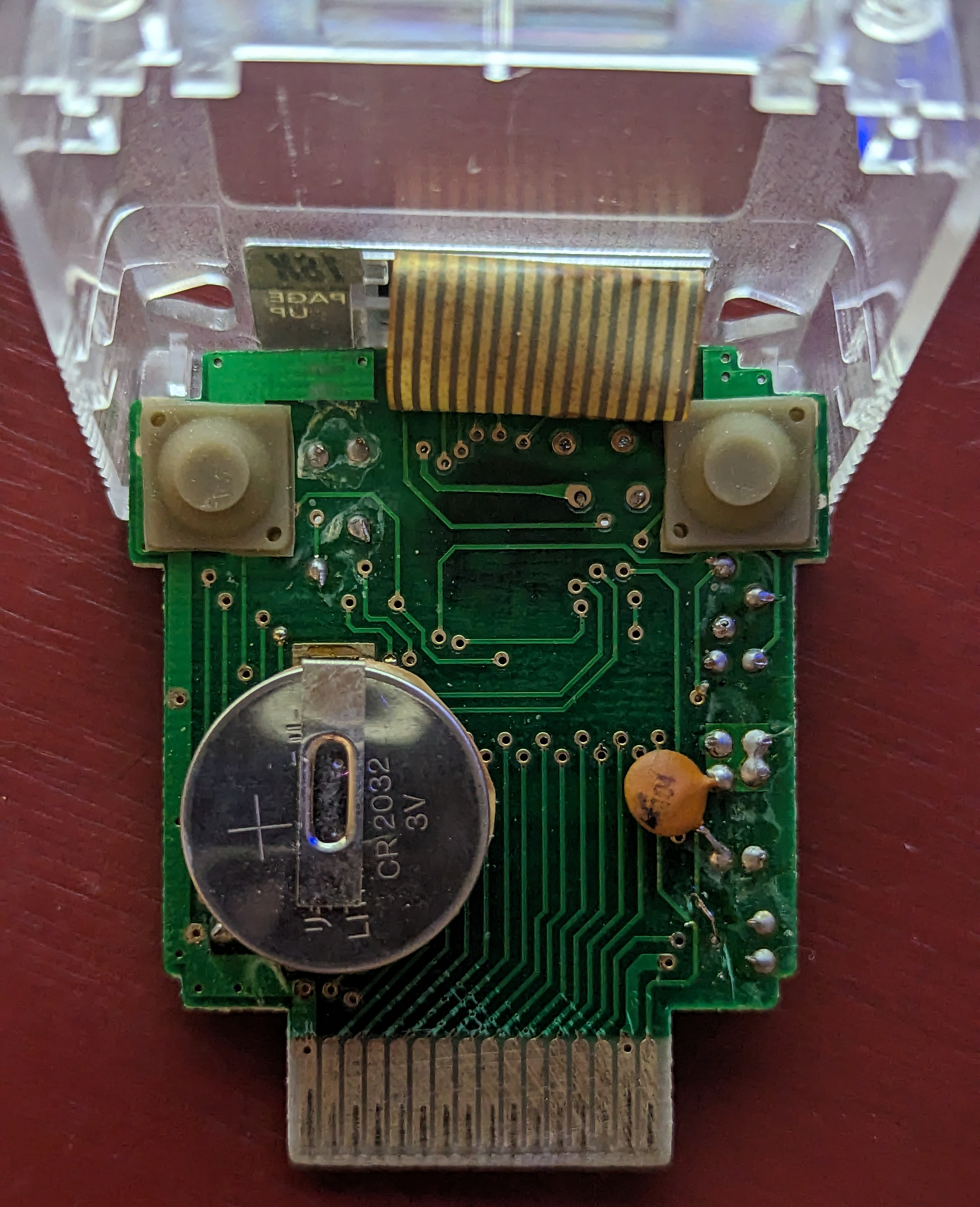

Board

OEM pak utilizing a 4 MBit CMOS static ram chip, backed up by a battery to keep memory while it is not inserted into a powered on system. There is some custom circuity to manage the LCD screen and the additional address lines.

Hardware Specs

Ram chip: MITSUBISHI M5M5408AFP 55LL 4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM

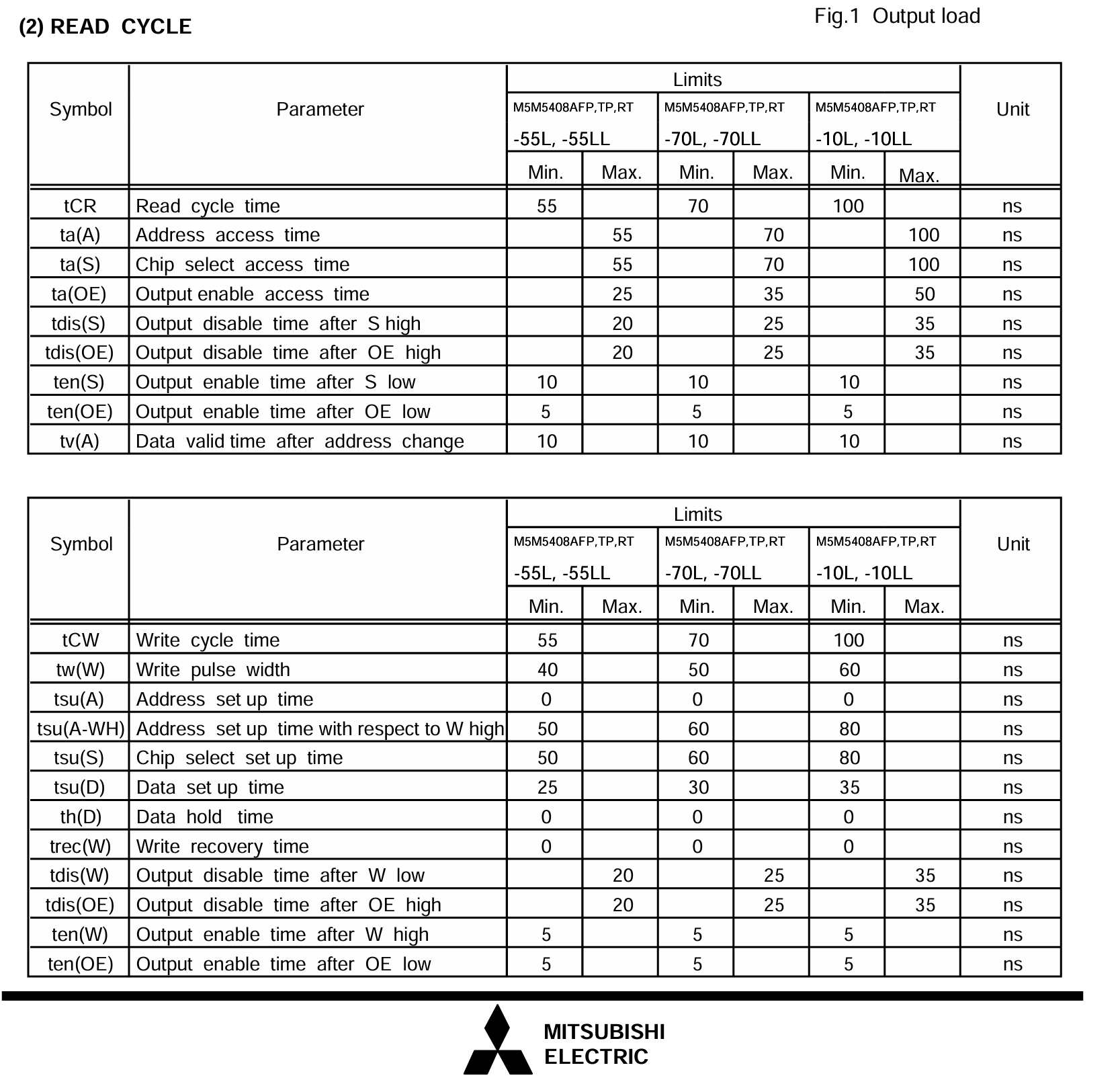

Timings

Similar to other memory chips, this has a 55ns timing
