Performance 32x Memory Card

This is a much more engineered version of the memory card, utilzing a lot more electronics, and two 7 segment displays to show what card you're on.

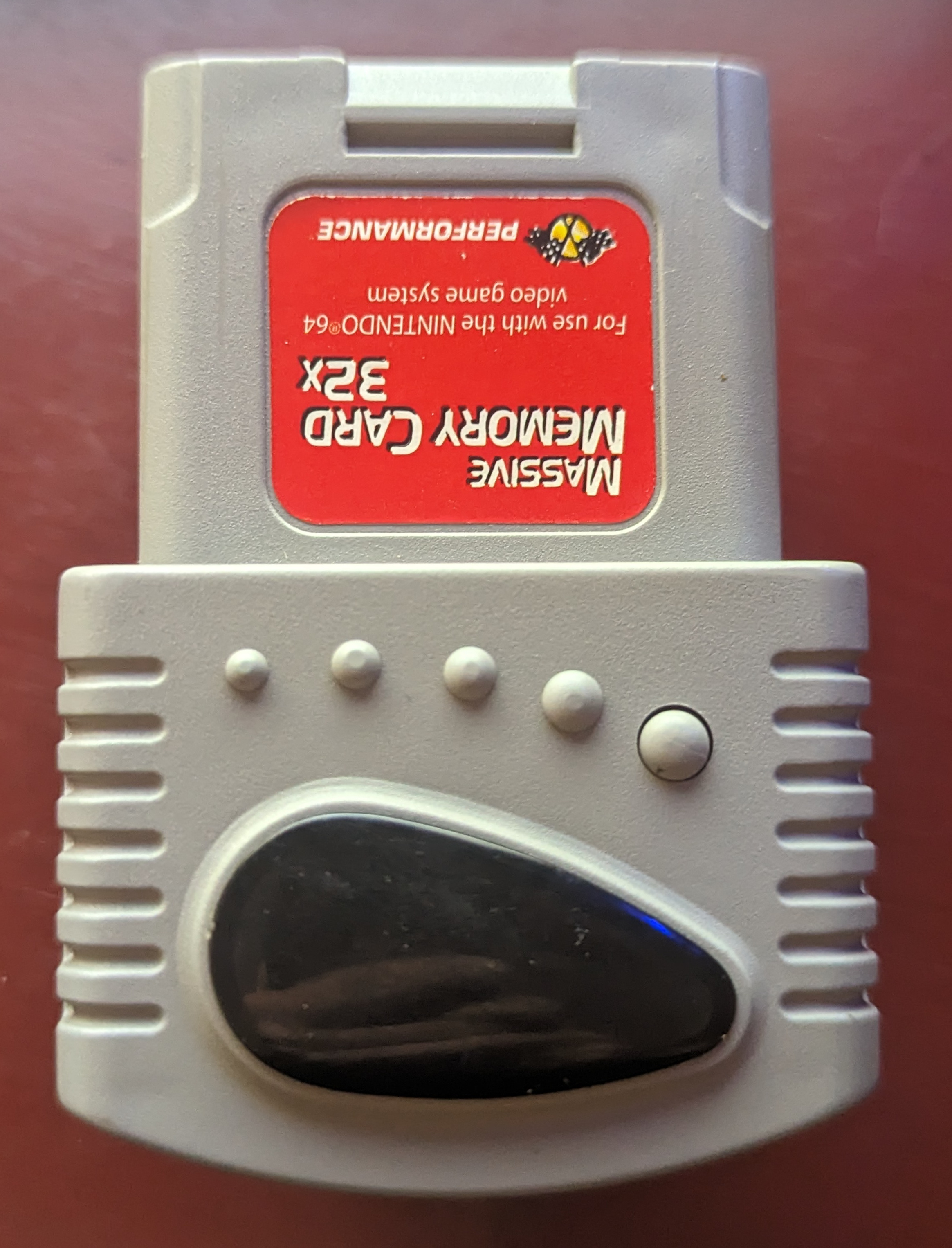

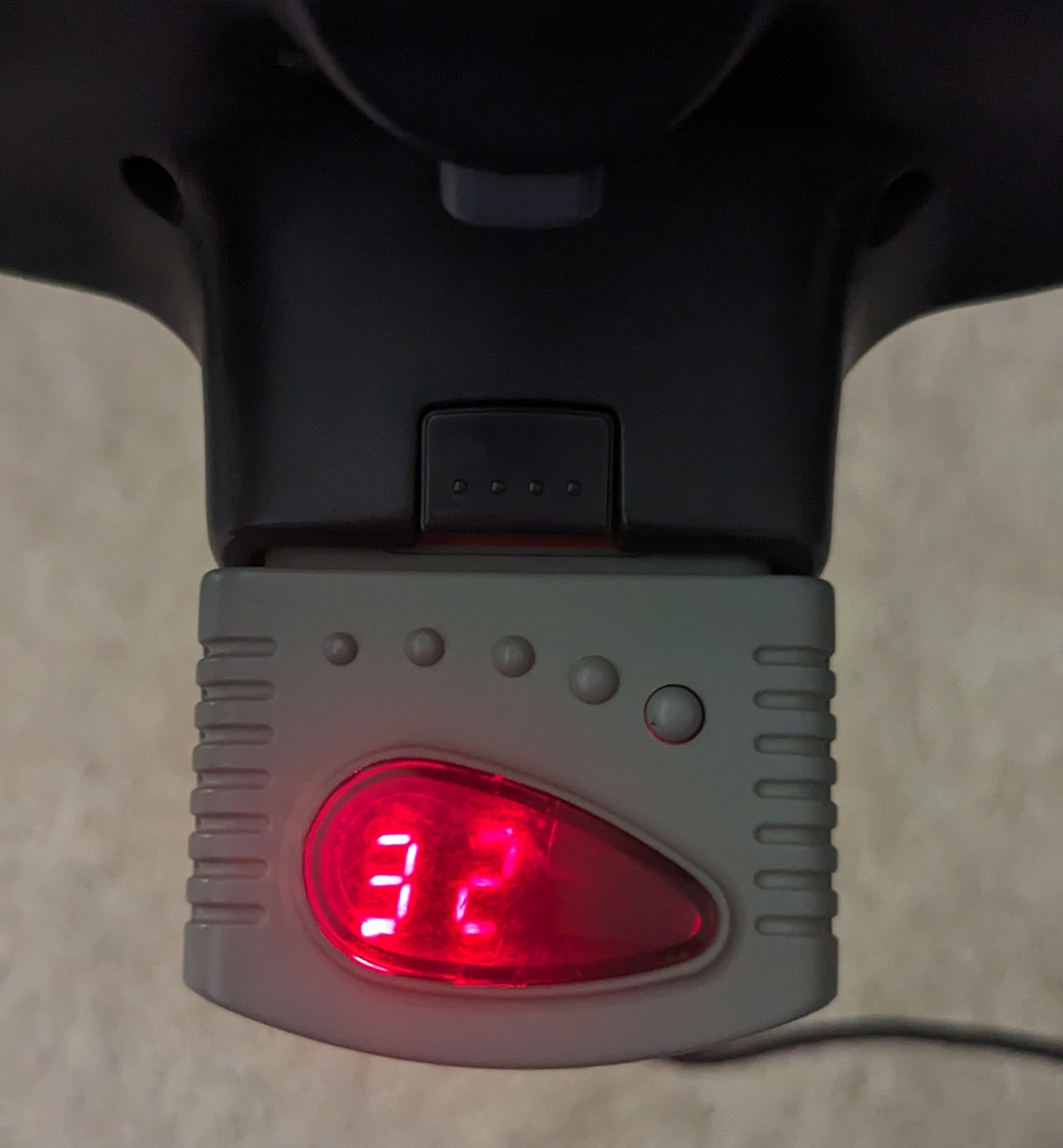

Switching between cards if done by the "largest" dot which is the only button on it, it can be clicked to go to the next, or held to scroll through and release when it reaches which number is desired. After a new number is selected it will display "--" as it loads the saved memory into the SRAM chip.

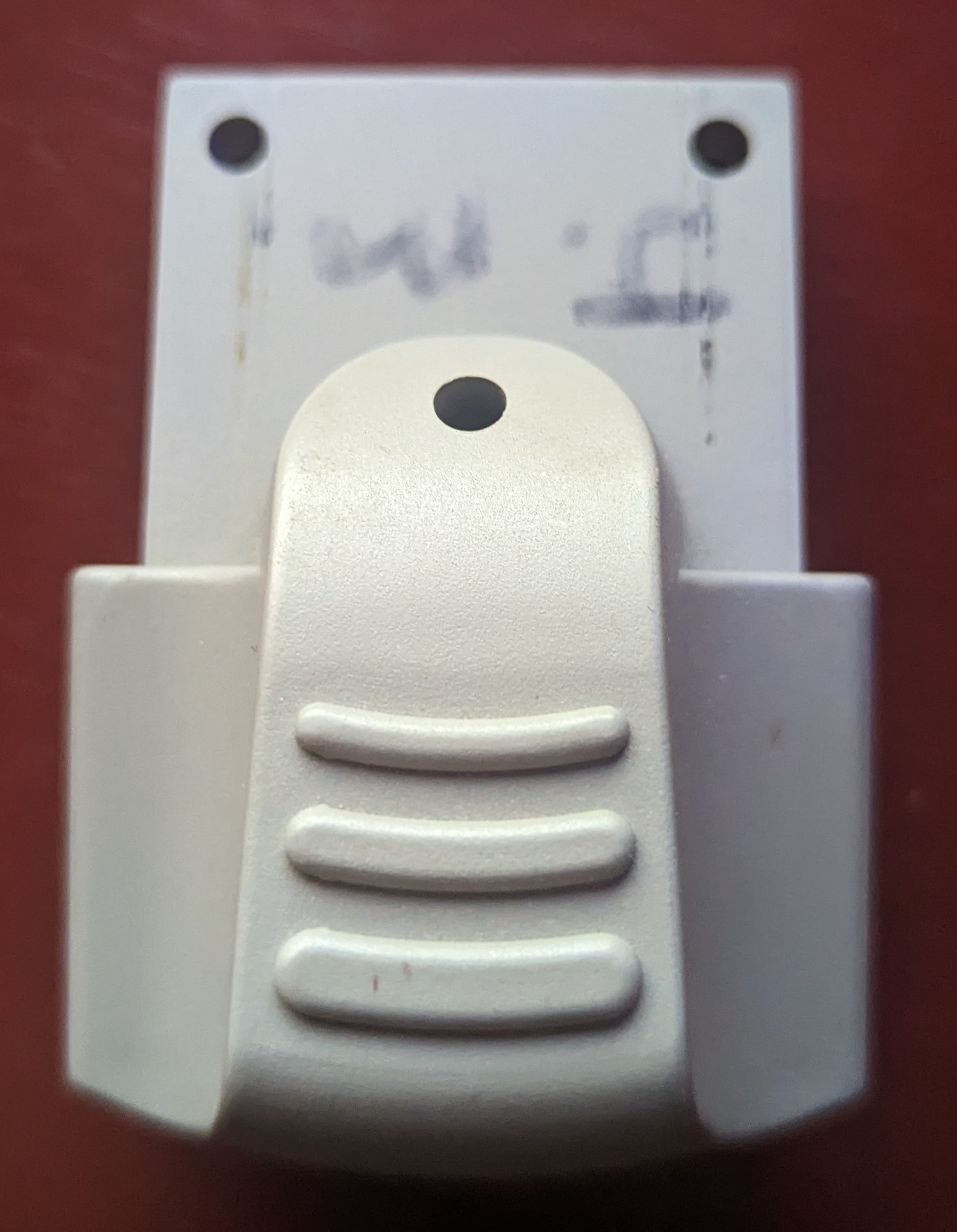

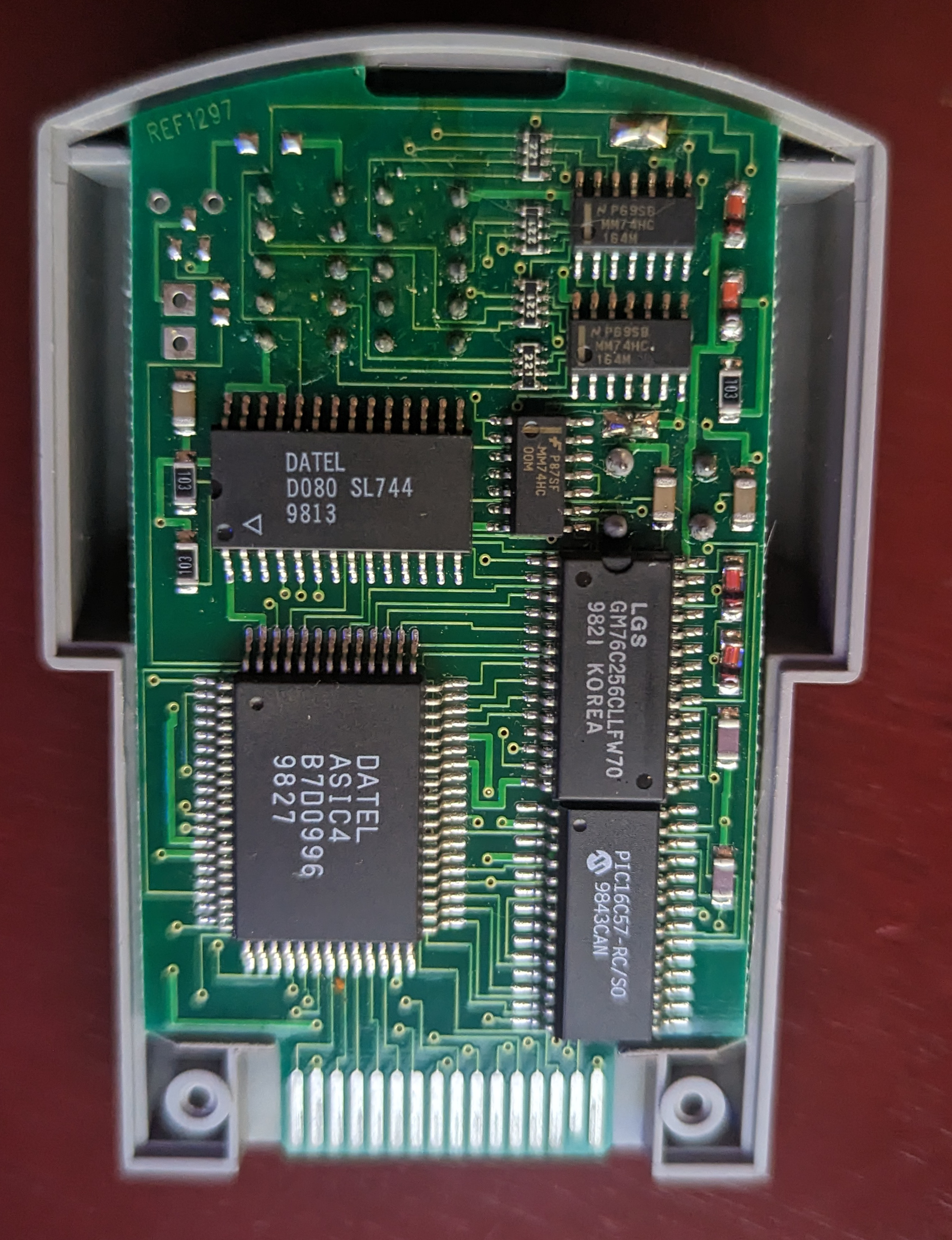

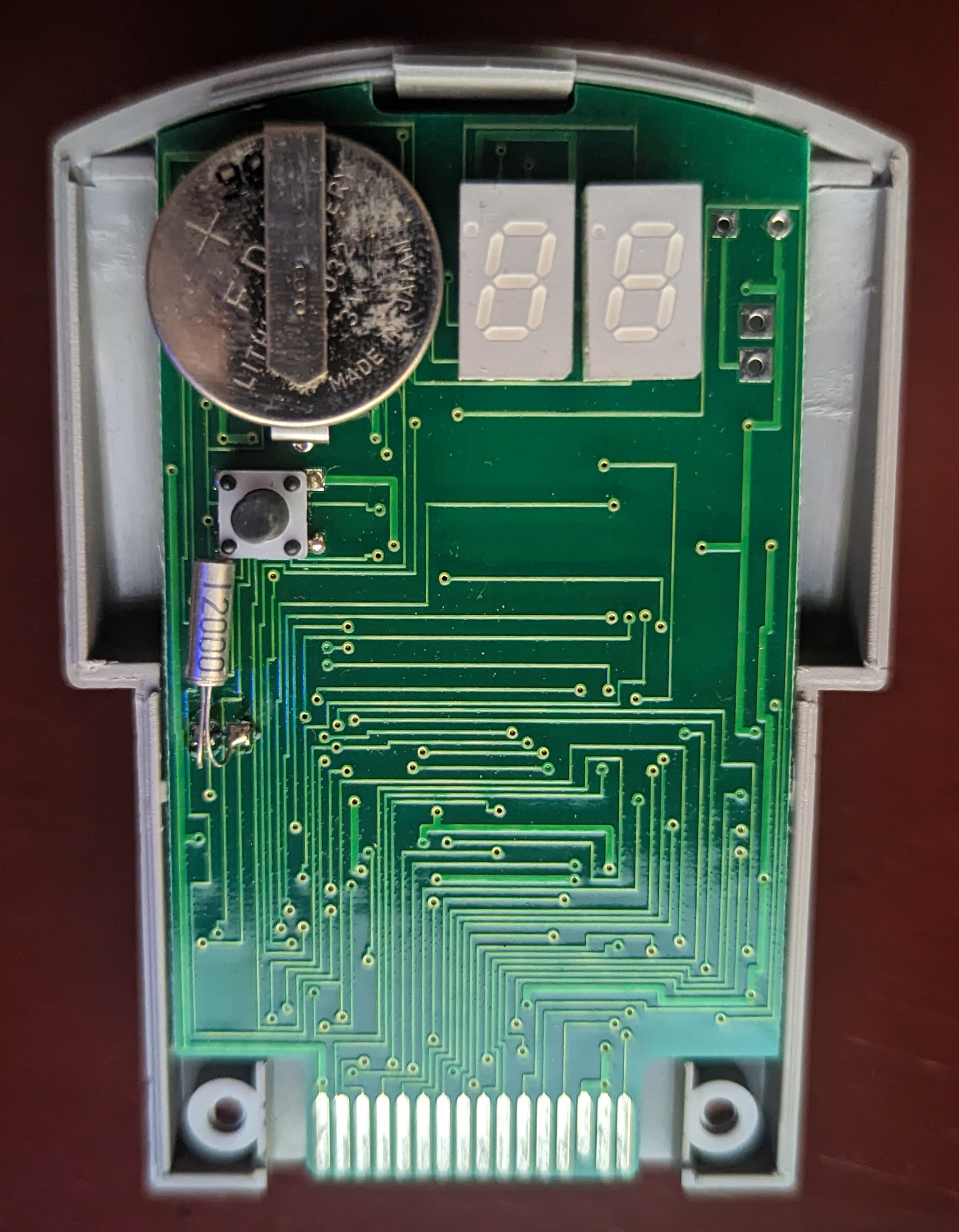

Board

The main storage of this is unknown at this point, it utilizes two custom Datel silicon chips, one is an ASIC. It has an SRAM, shift registers, and a microcontroller

Hardware Specs

Ram chip: Hynix GM76C256C 32K x8 bit 5.0V Low Power CMOS slow SRAM Microchip PIC16C57 EPROM/ROM-Based 8-bit CMOS Microcontroller Series 2x Fairchild MM74HC164 8-Bit Serial-in/Parallel-out Shift Register Fairchild MM74HC00 Quad 2-Input NAND Gate Datel D080 SL744 Datel ASIC4
