Preformance Memory Card

Board

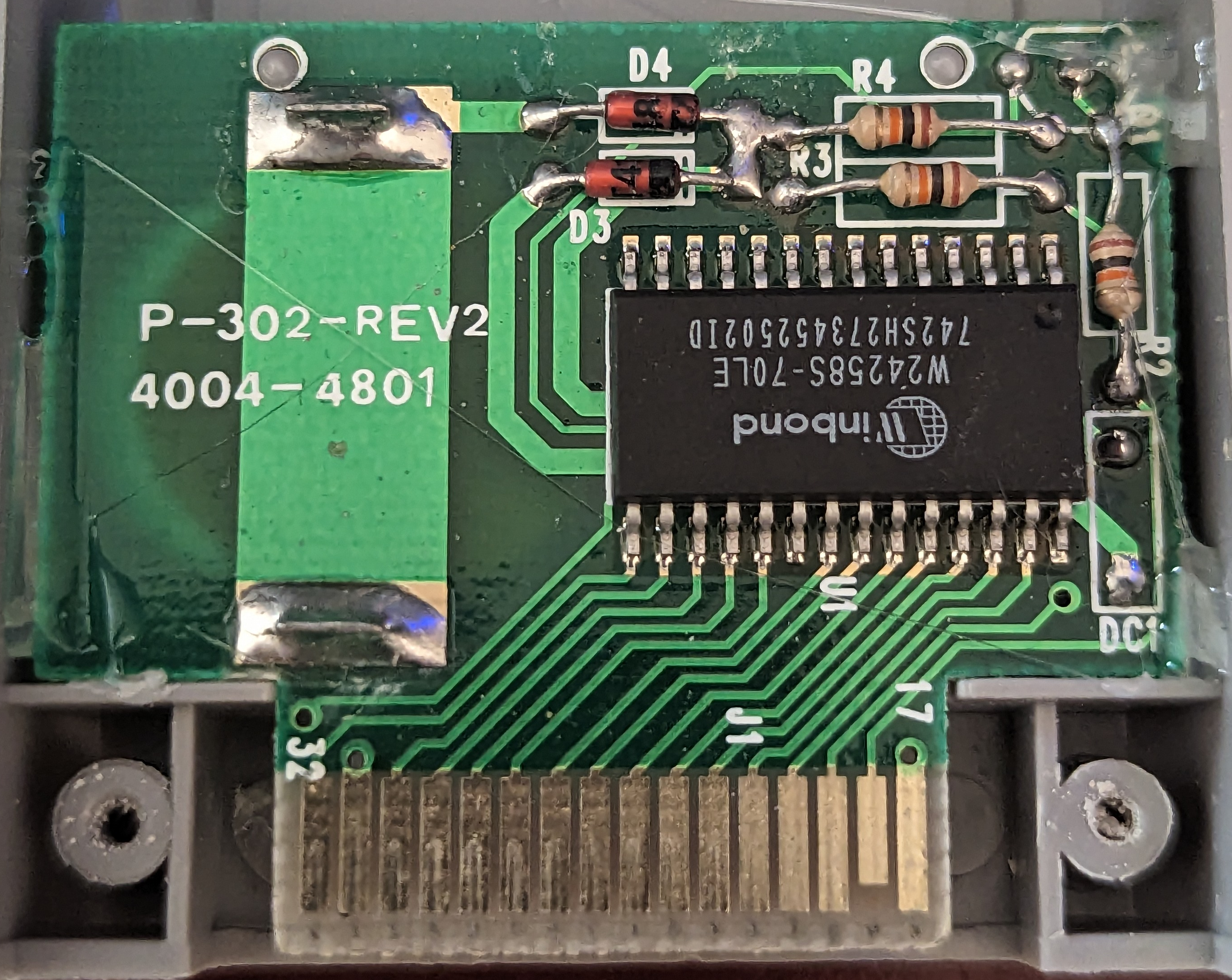

Similar to the OEM pack, utilizes a 32K X 8 CMOS STATIC RAM, backed up by a battery to keep memory while it is not inserted into a powered on system.

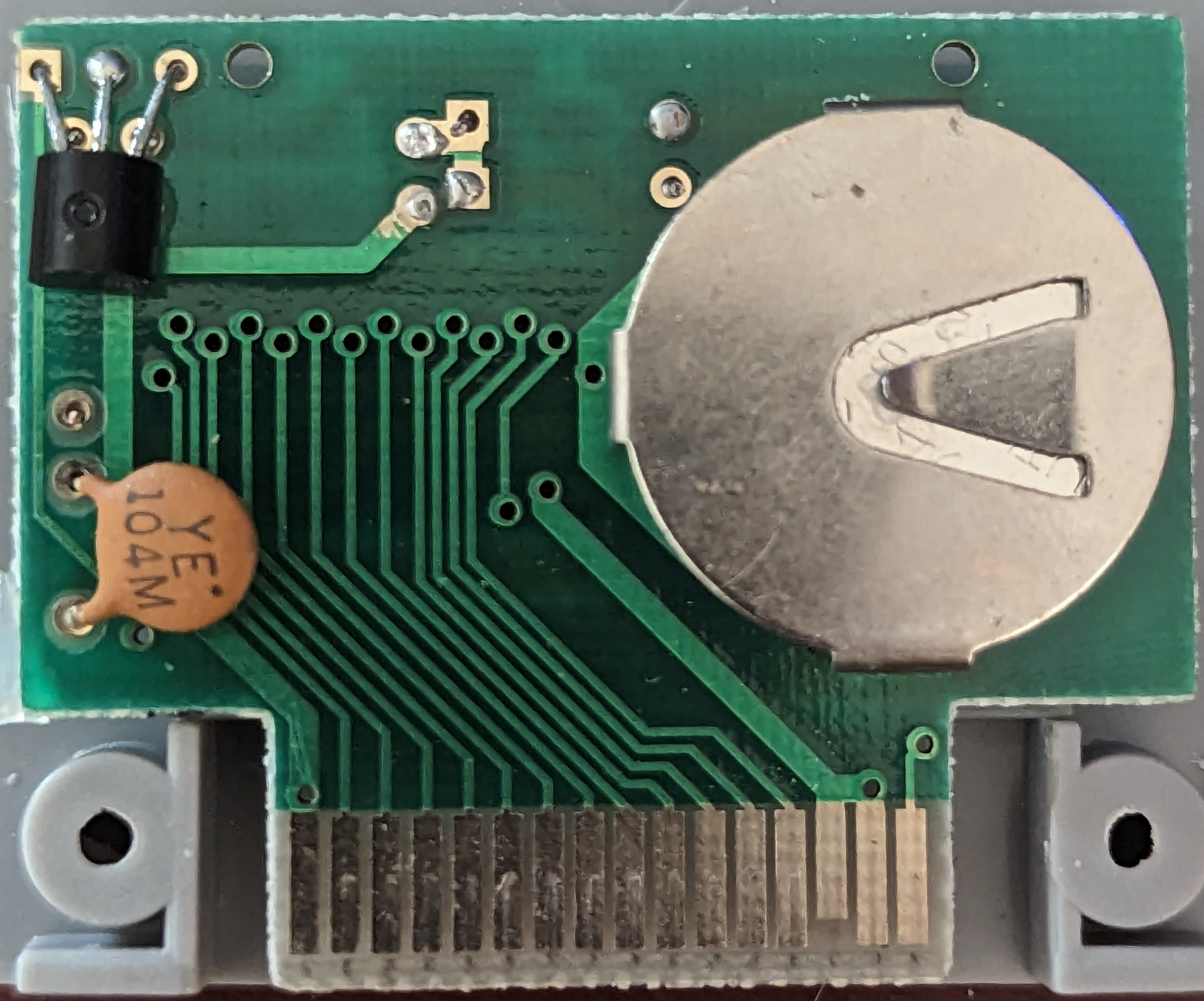

Unlike the OEM pack which uses a battery management IC, it utilizes a transistor, two diodes, and a couple resistors to manage the power.

Hardware Specs

Ram chip: Winbond W24258-70LE 32K X 8 CMOS Static RAM

Timings

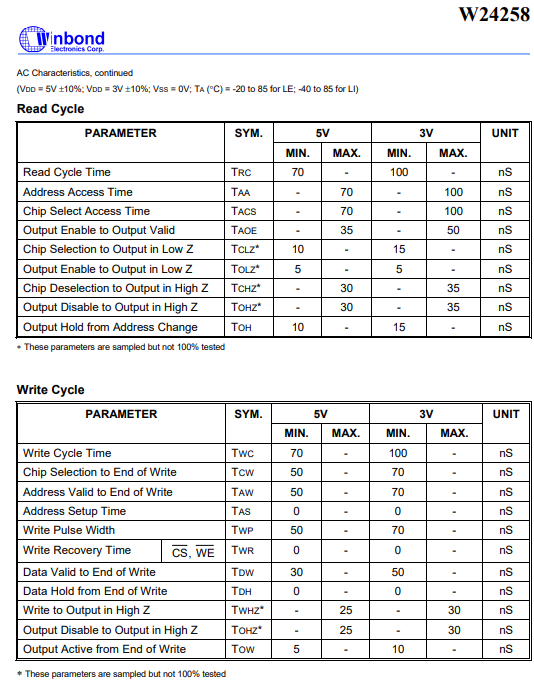

THe write address access time, and write cycle time is longer than the OEM pak at 100nS
